G7 Ezy Farmnavigator
Intelligent farming made easy
Basic Guidance + Visual Automatic Section Control
If you thought Intelligent Farming technology was not for you, the G7 Ezy Farmnavigator will change your mind.
Affordable and easy to use, it can be adopted by farms of any size.
Affordable, easy to use & adopted by farms of any size or shape

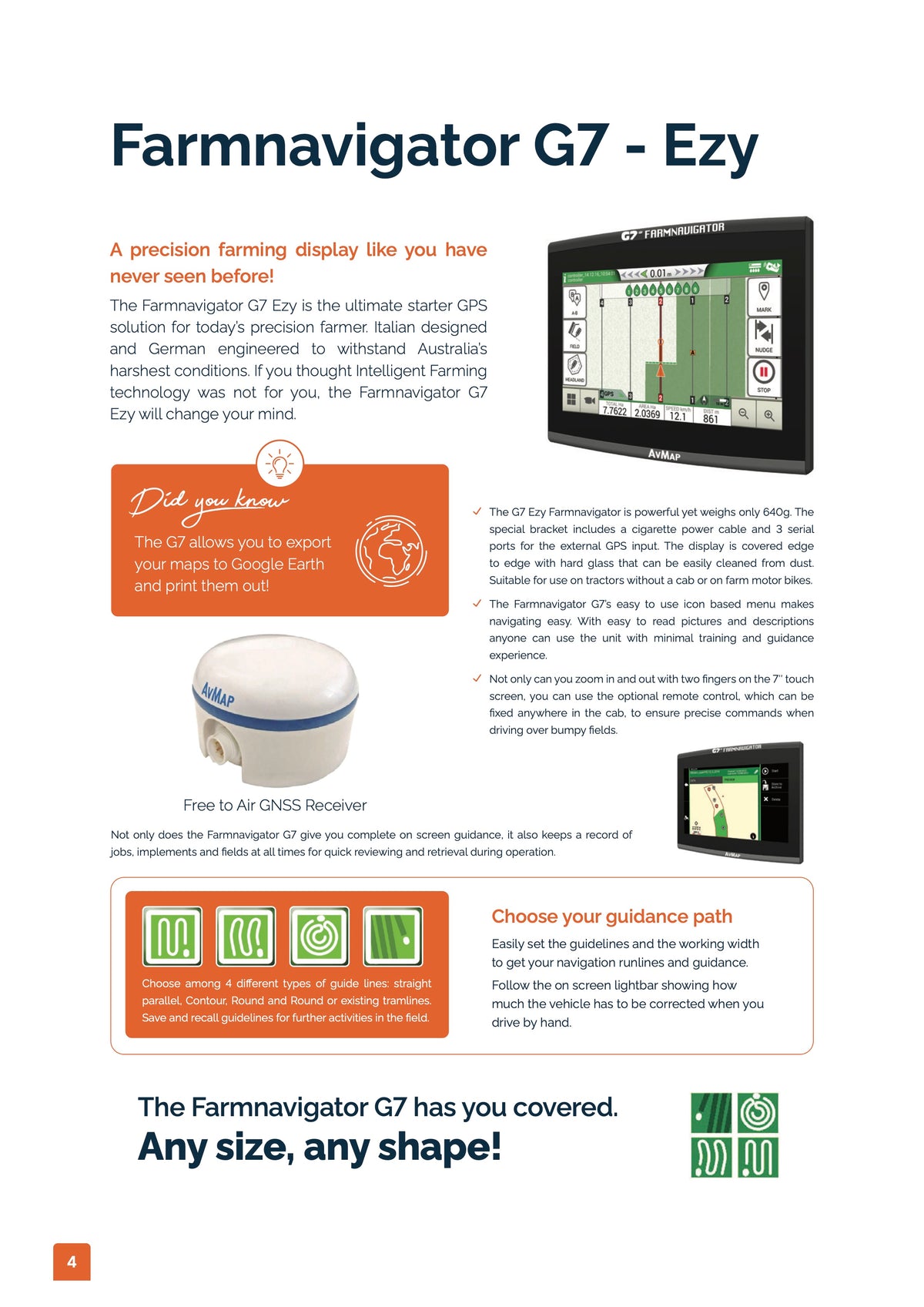

The Farmnavigator G7 Ezy is the ultimate starter GPS solution for today’s precision farmer. Italian designed and German engineered to withstand Australia’s harshest conditions. If you thought Intelligent Farming technology was not for you, the Farmnavigator G7 Ezy will change your mind.
EASY TO INSTALL
G7 Ezy Farmnavigator is powerful yet weighs only 640g. The special bracket includes a cigarette power cable and 3 serial ports for the external GPS input
DUST & WATER PROOF
The display is covered edge to edge with hard glass that can be easily cleaned from dust. Suitable for use on tractors without a cab on farm motor bikes.
The Farmnavigator G7 Ezy features an ultra bright 7” sun-light readable display, with incredible high definition and multi-touch capabilities. You can use multiple finger gestures on the display to scroll menus, or to zoom in and out the field view by stretching and pinching with two fingers.
You can use multiple finger gestures on the display to scroll menus, or to zoom in and out the field view by stretching and pinching with two fingers.
The software is farmer-friendly, with a very intuitive interface and large buttons for each function.
In the field view you can keep an eye on all the most important data and everything is within reach thanks to the collapsible menus. The display is covered edge to edge with hard glass that can be easily cleaned from dust. Suitable for use on tractors without a cab on farm motor bikes.
Map Your Fields
Start creating your fields’ database:
- Measure your field boundary
- Calculate the area
- Save the position of obstacles or soil samples
Choose your guidance pattern
Choose the guidelines for your activity and follow the guidance cursor to correct your driving. Choose among:
- A-B parallel lines
- Identical curves
- Adaptive contour or
- Pivot guidelines
- Save and recall guidelines for further activities in the field
So EZY ! – Just make sure the guidance line is always visible through the circle on the top of the smart cursor. The cursor will help you understand the tractor turn radius, to quickly correct your steering.
When starting a job, you can create a headland within the field boundary, based on your working width.
- The Headland Management function is very useful for irregular fields such as triangular fields. When active, it will automatically close the sections of the implement at the headland border, the headland can be worked at the end, avoiding unnecessary overlaps.
- The headland function can be used with A-B parallel guidelines, identical curves and adaptive contour guidelines.
The Farmnavigator G7 Ezy records data for each Job: farmer, activity, field, implements used, products used, worked area, total time etc.
- Manage your data: fields and jobs can be exported to Google Earth as .kmz files.

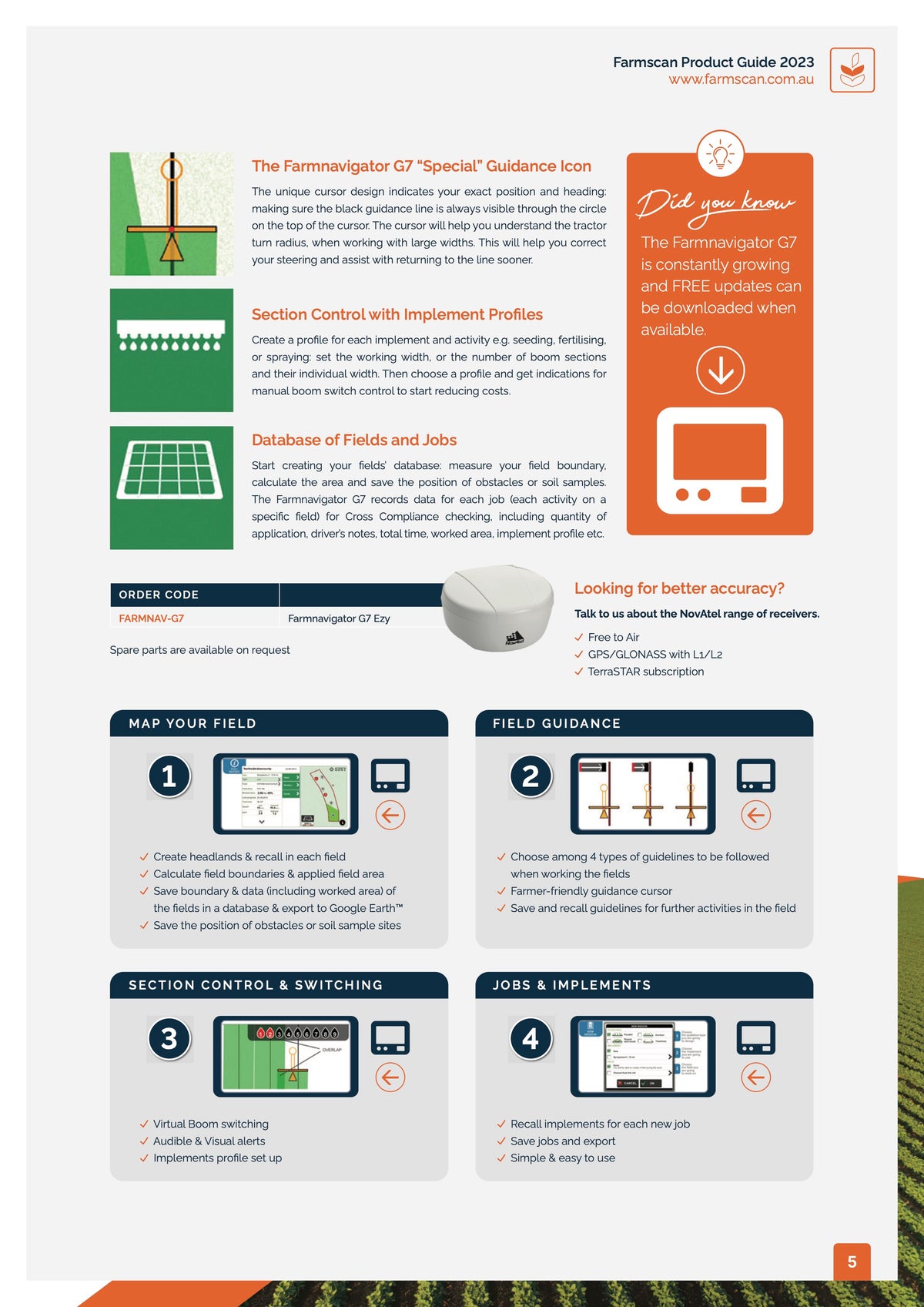

Virtual Section Control
Create a profile for each implement and activity e.g. seeding, fertilising, or spraying: set the working width, or the number of boom sections and their individual width.
Then choose a profile and get visual indications for manual boom switch control to start reducing costs.
Your Choice of GPS Accuracy or BYO
Basic & Free to Air
High sensitivity and minimal acquisition time in a compact housing.
• GPS, GLONASS and GALILEO L1
• 72 Channels (Combined)
• Position accuracy RAW : 2.5m CEP
• Position accuracy SBAS : 0.7-.0.9m RMS 95%
• NMEA Update of 10 Hz
• 4m Power to DB9 cable
(Not recommended for implement widths 3m or under)
NovAtel's Ag-Star provides an integrated L1 GPS+GLONASS receiver and antenna in a single rugged housing. Software upgradable, the Ag-Star eliminates the need for costly hardware replacement as requirements change and provides sub-meter position accuracy.
• GPS, GLONASS L1
• 14 Channels (Combined)
• Position accuracy RAW : 1.5m CEP
• Position accuracy SBAS : 0.4-.0.7m RMS 95%
• Smooth Pass-to-Pass Accuracy using GLIDE - Great for smaller implements
• 5m Power to DB9 cable
