- This replaces the A-2220P Bin/Tank Level Sensor
- Replacement Bin Level sensor
- This Bin/Tank level sensor also works with John Deere/Trimble/Raven.
- However, please make a note when ordering so we can supply a modified cable to up the rail voltage.

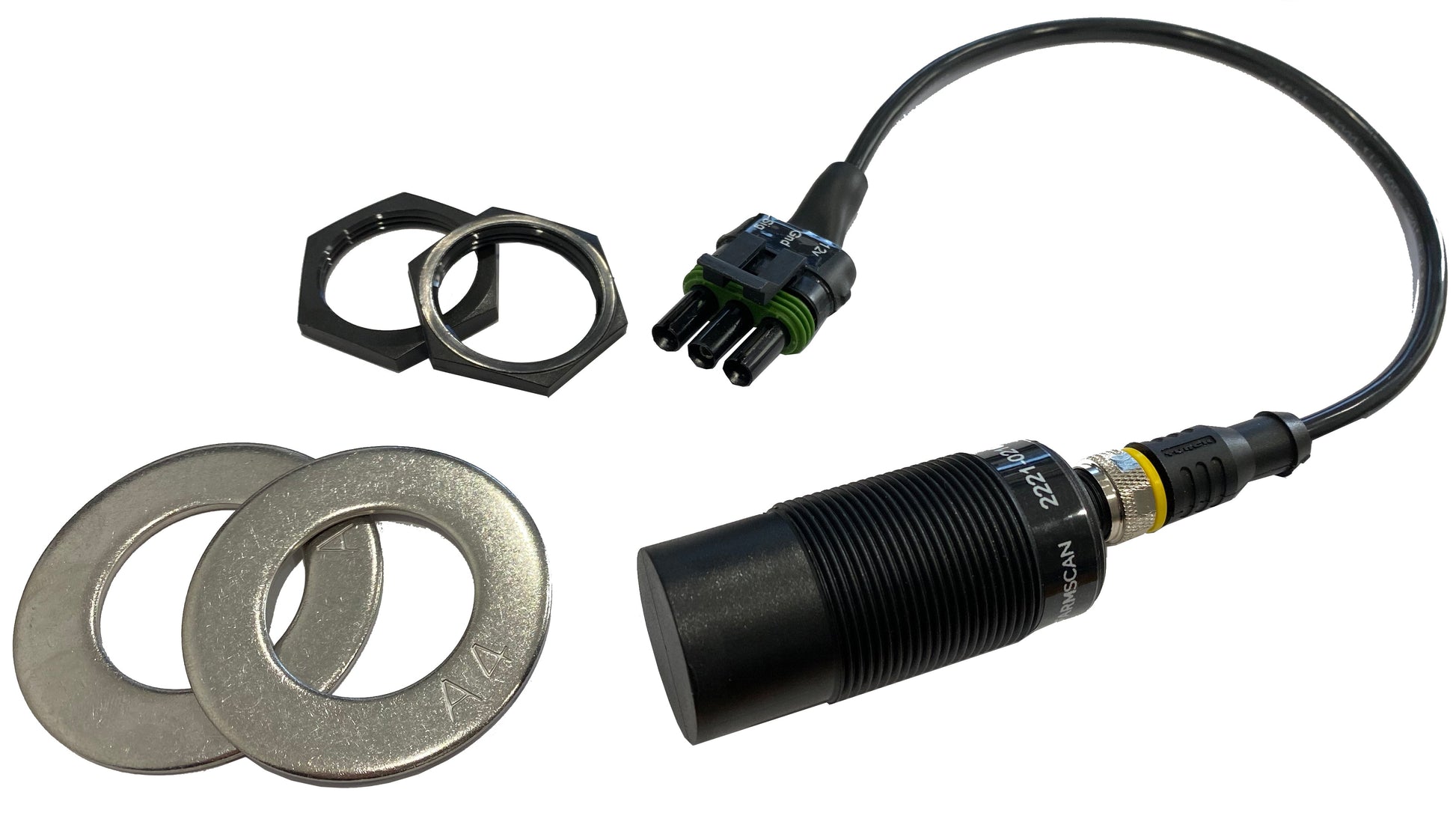

- This kit also includes 2x M30 locking nuts and 2x M30 Stainless steel washers to cover up existing sensors holes in the tank.
- Specifications:
- Capacitive sensor (solid or liquid)
- 65mm sensor length
- 30mm diameter
- 30cm Tail
- Input voltage 12vdc
- 3.3v Trigger or 12v trigger with modified cable
- WILL NOT WORK WITH 1020 AIRSEEDER BLOCKAGE MONITOR
