Measures grain moisture content, hectolitre mass (test weight) and temperature quickly and accurately
The Farmscan 2167 measures the moisture content, test weight and temperature of grain quickly and accurately. It also guides you how to achieve the maximum precision of your measurement results, reducing the risk of under- or over-drying. You will receive your measurement results quickly, in less than 7 seconds!
Accurate and reliable measurement result
The moisture meter features a sample size that is clearly larger than on other grain moisture meters. The large sample size provides a more comprehensive overview of the grain being measured, avoiding situations where random green kernels distort the result. This handy meter with its clear backlit display guides the user and produces reliable measurement results even if applied by less experienced operators.
Applying weight compensation, the meter balances the differences within grain types, as well as structural variations in kernels caused by the change of season.
Also measures the test weight
Excellent ease of use
Using the meter does not require force: just fill the transparent cup attached to the top of the meter, release the grain sample into the measuring chamber, and level the sample with the patented integrated levelling system. Excess grain falls neatly into the trough around the measuring cup.
Measuring is also fast: the meter does not require cleaning between measurement operations, as opposed to, for instance, crushing meters.

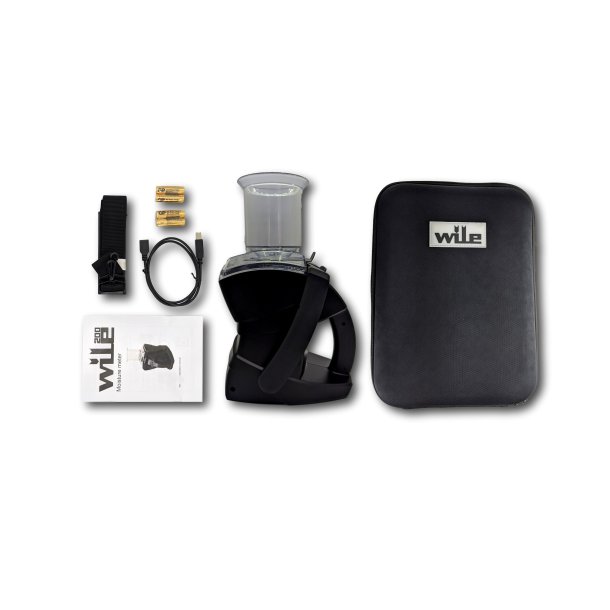

- Carrying case and carrying strap
- Operating manual.
The measurement range varies between 1% and 38%, depending on the grain and the market. The typical range for cereal grains varies from 5% to 30%, and for oil seeds – from 2% to 25%. Repeatability of the measurement results: ±0.3% points in normal moisture range for stored grain.
Important! The scale settings of the meters are adjusted to match the common standard grain types as closely as possible. However, properties of grain are likely to vary due to, for instance, varying growing conditions or new species. Therefore, we advise you to always make sure before the harvesting that with the grain type you handle, the readings of your meter match the readings obtained in oven-testing. Always take several samples and use their average as the result.
Tip! You will get the best measurement accuracy for your grain if the temperature of the meter and the grain is within the range of 16-32˚C. The temperature of the meter and grain have to match each other as closely as possible, and it is advisable to store the sample in a container that is as air-tight as possible. In order to obtain a reliable result, the sample has to be representative.
- NB : The price point of the Farmscan 2167 cannot be compared to a $5,000-$15,000 Grain Analyser.
- This product is made AgraTronix LLC - USA & can also be found branded as CASE/NEW HOLLAND/JOHN DEERE/AGRETO/SPAREX/WILE & OTHERS.
- Direct readout for 20 different grain scales
- Displays grain test weight (no pre-weighing)
- Measures moisture fast, easy & accurately
- Non-compaction design with LCD display
- USB compatibility for updates of grain scales and firmware
- Automatic temperature compensation
- Moisture range: 6% to 45% depending on grain tested
- Temperature range: 32° to 122°F (0° to 50°C)
- Repeatability & Accuracy: ± 0.2% in normal moisture range for stored grain
- Display Resolution: 0.1% moisture
- 4 AA batteries required (Not included)
- USB cord & carry case included
Barley 2R, Barley 6R, Corn, Lentils, Oats, Rapeseed (Canola), Rye, Safflower, Sorghum (Milo), Soybeans, Sunflower Oil, Triticale, Buckwheat, Peas, Wheat:Durum, Wheat:Hard Red Spring, Wheat: Hard Red Winter, Wheat:Soft Red Winter
Watch the product in action!
Looking to purchase a Farmscan Digital Grain Moisture Meter Plus, but want to see it in action? Check out the video below.
