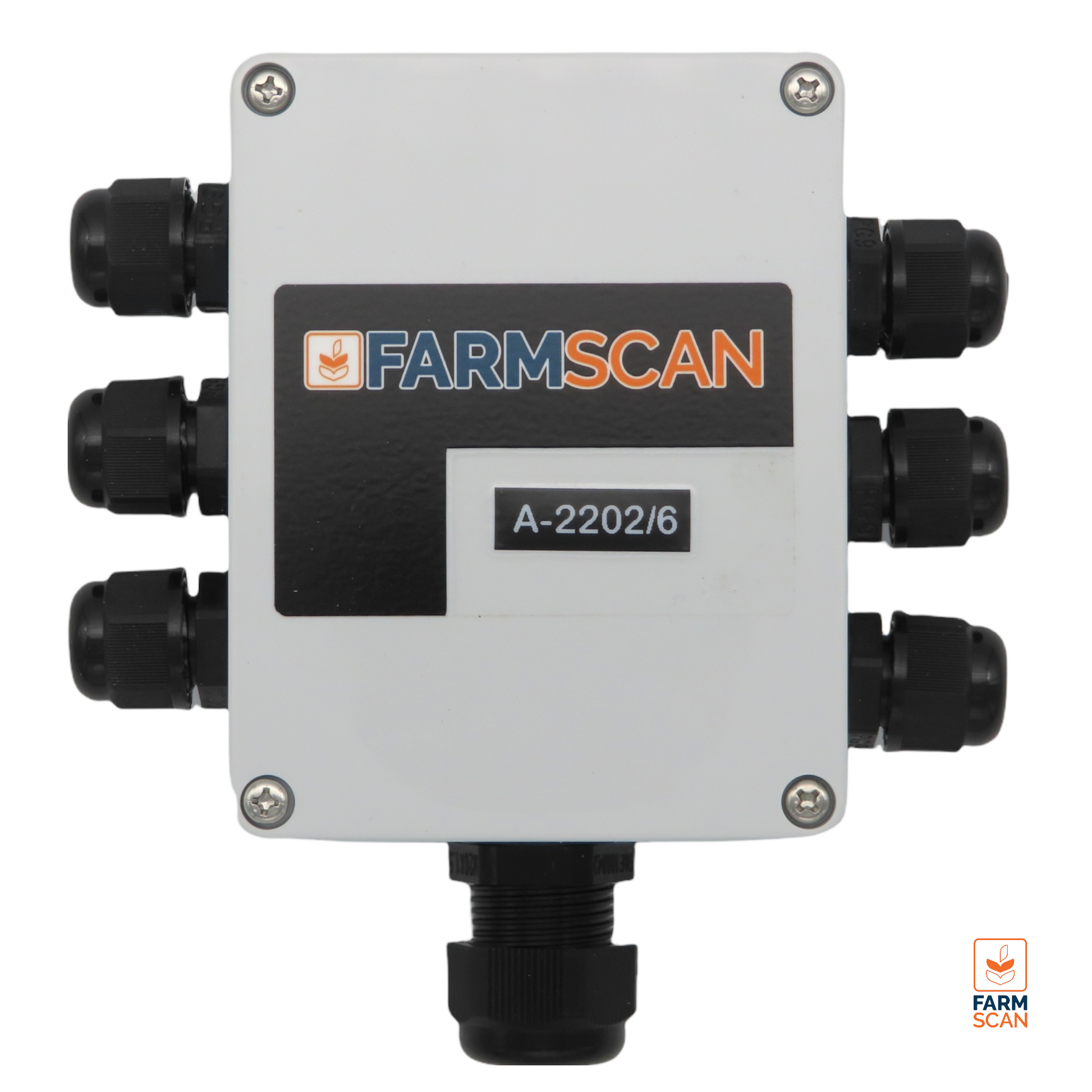

- Jackal Junction Box - 6 Sensors Only
- Up to a maximum of 6 sensors only
- Best used when using 3 or more sensors
- Use GPS speed sensor T-135 if you need to free up a port
- Suitable sensors are 3 wire Proximity Sensors with NPN output, AA-2011P
- Bin Level sensors with NPN output, A-2221 & A-2221-JD
- Magnetic Reed Sensors, AA-2001
- Pressure sensors, AA-119-L & AA-119-H
- Best used in conjunction with C-409, 9 core cable
- Red LED indicator will illuminate when correctly terminated and sensor is working on each port
Pin out Diagram for Installation - CLICK HERE
